Used 1980 LANSING FS-750 | LATHES, "T" TYPE
ConditionUsed
1 available

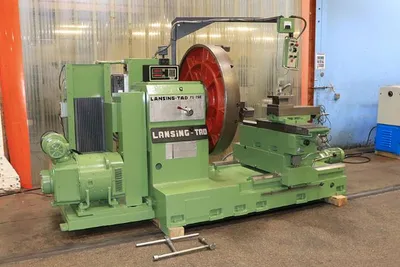

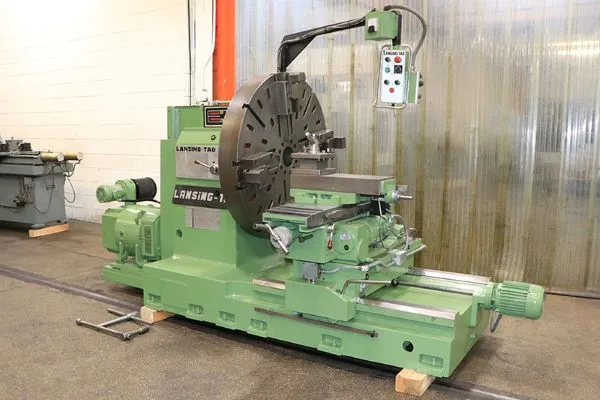

60" Lansing "TAD" Model FS-750 Facing Lathe equipped
with a 20 H.P. main motor and controls having the
following general specifications:
SPECIFICATIONS:
Actual swing over bed, 60"
Swing over cross slide, 15"
Maximum distance faceplate to toolpost, 40"
Swivel of tool slide compound, 360 degrees
Travel of Main slide, 25"
Travel of tool slide, 14"
Variable spindle speeds, 2 Ranges: 6 to 42 and 28 to 200 RPM
Power feed range, .003 to .5412 IPR
Floor space: 6' x 11 1/2' x 6' high
Weight approximately: 11,500 lbs
EQUIPMENT:
47 3/4" 4 Jaw Faceplate Type Chuck with 4 Jaws,
4 way Toolpost, 2 Axis Digital Read Out*, Pendant Control.
Built 1980 - Inspect Under Power - 30 Day Guarantee
Temporary Description
F.O.B. Truck Harrison, NJ
