Used 1989 ELDORAD M75 KNEE | DRILLS, GUN
ConditionUsed
1 available

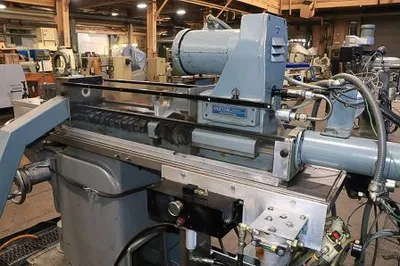

1"x30" Eldorado Model 75 Knee Type, Single Spindle Deep Hole
Drilling Machine equipped with a 2 H.P. main motor and controls
having the following general specifications:
SPECIFICATIONS:
Working surface of table, 12"x24"
Table Travels, 24"X, 24" Y, 12"Z
Drilling capacity, .055 to 1" (depending on materials)
Spindle travel ball screw feed, 30"
Variable spindle speeds, 1440 to 11,740 RPM
Variable spindle feed rate, .1 to 99.9 IPM
Rapid traverse and return rate, 200 RPM
F-18 High Pressure Coolant System, 1500 PSI
and 18 GPM, 90 Gallon Tank, 7.5 H.P. pump motor
Floor space: 3'x8'x5' high
Floor Space of Coolant System, 74"x36"x41" high
Weight approximately: 5,000 lbs
EQUIPMENT:
Flo-Minder, Whip Guide, Automatic Lubrication System, Feed Thrust
Meter, Way Covers, Upper Bellows and Plexiglass Spray Shields.
Serial Number: 1401 - Built 1989
Temporary Description
Return Privilege Guarantee. Inspect Under Power.
F.O.B. Truck Harrison, NJ
