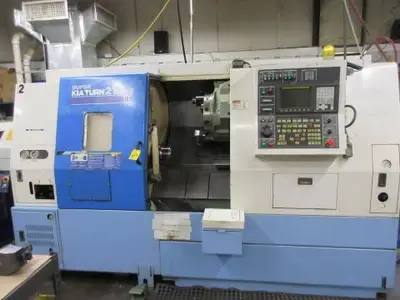

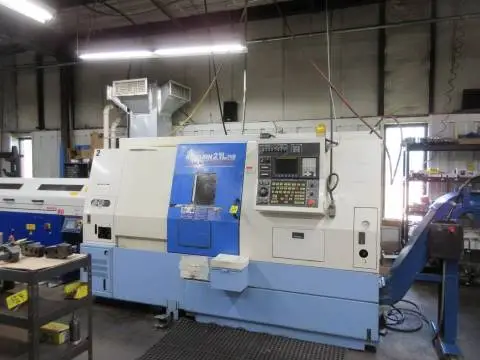

Used 2004 KIA SUPERTURN 21L | LATHES, TURNING, N/C & CNC

SPECIFICATIONS:
Actual swing over bed, 21.6"
Maximum Turning Diameter, 13.8"
Maximum Turning Length, 20.9"
Spindle Nose, A2-6
Hole thru spindle, 2.99"
Maximum Bar Capacity, 2.56"
Spindle Speeds, 25-4000 RPM
X Axis Travel, 8.2"
Z Axis Travel, 21.6"
B Axis Trave, 29.5"
Rapid Traverse X,Z,B, 1417, 1417, 1181 IPM
Turret Stations, 12
Sub Spindle Speeds, 5,000 RPM
Sub Spindle Motor, 5 HP
Milling Spindle Speeds, 4,000 RPM
Milling Spindle Motor, 5 HP
Approximate Machine Weight, 10,600 lbs

EQUIPMENT:
Fanuc OiTB CNC Control, ATS S26 Collet Chuck, 16C Collet Chuck on
Sub Spindle, Full C Axis on Main Spindle, Automatic Parts Catcher
MTA Super 80 Short Magazine Bar Feed, Tooling & Chip Conveyor.

Serial Number: SKT21LMS0137 - Built 2004 - Excellent Condition

F.O.B. Truck Harrison, NJ

Inspect Under Power. 30 Day Return Privilege Guarantee.
