Used 1981 ELDORADO M75 KNEE TYPE | DRILLS, GUN
ConditionUsed
1 available

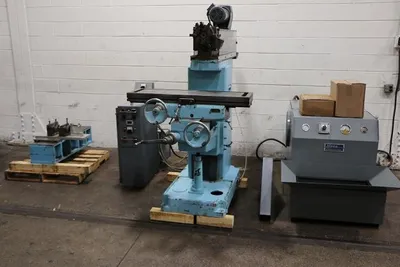

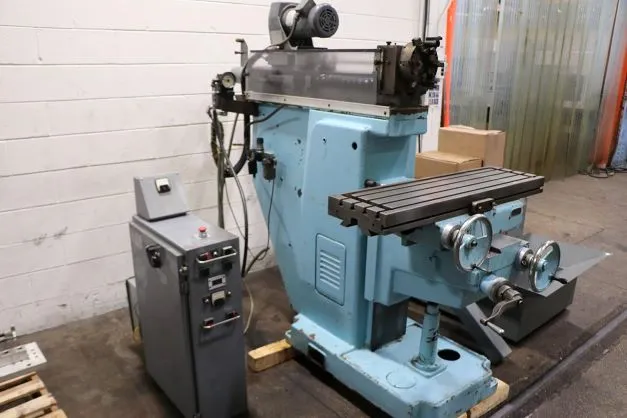

1"x30" Eldorado Model 75 Knee Type, Single Spindle Deep Hole
Drilling Machine equipped with a 3 H.P. main motor and
controls having the following general specifications:
SPECIFICATIONS:

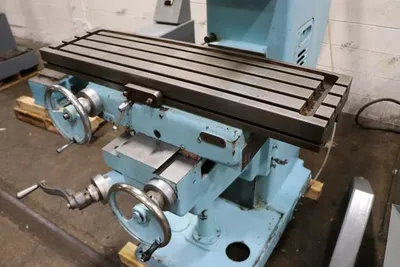

Working surface of table, 12"x42"
Table travels, 18"X, 16"Y, 10"Z
Drilling capacity, .055" to 1" (in most materials)
Spindle travel ball screw feed, 30"
Variable spindle speeds, 1440 to 11,740 RPM
Variable spindle feed rate, .1 to 99.9 IPM
Rapid traverse and return rate, 200 RPM
F-18 High Pressure Coolant System, 1500 PSI
and 18 GPM, 90 Gallon Tank, 7.5 H.P. Pump Motor
Machine Dimensions approximately: 4'x8'x7.5' high
High Pressure Coolant Dimensions: 3'x6'x3' high
Weight approximately: 5,000 lbs
EQUIPMENT:
Flo-Minder, Feed Thrust Meter, Automatic

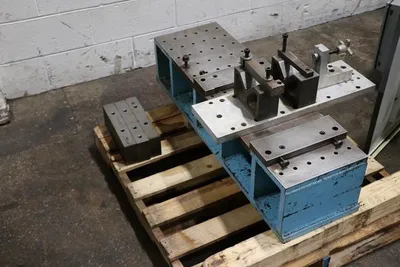

Lubrication System, and 12"x42"x13"H Riser Fixture.
Serial Number: 938 - Built 1981
Temporary Description
Inspect Under Power.
F.O.B. Truck Harrison, NJ
