Used 1981 ELDORADO M75 DUAL SPIND | DRILLS, GUN
ConditionUsed
1 available

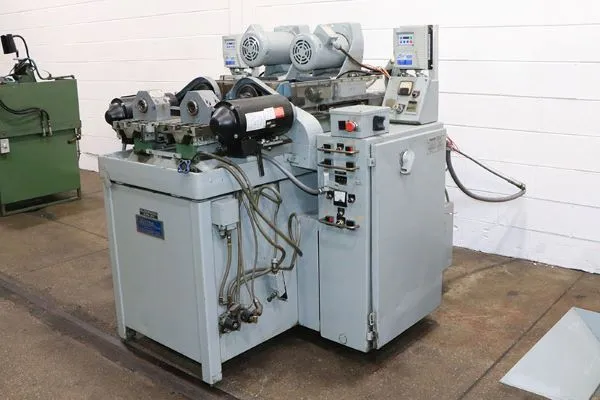

1" x 15" Dual Spindle Eldorado, M75, Gun Type Drilling Machine
equipped with (2) 1 H.P. main motor and controls having
the following general specifications:
SPECIFICATIONS:
Working surface of both tables, 10 1/2" x 14"
Drilling capacity, .055 to 1" (in most materials)
Spindle travel ball screw feed, 15"
Variable spindle speeds, 725 to 5,860 RPM
Variable spindle feed rate, .1 to 99.9 IPM
Rapid traverse and return rate, 200 RPM
F-18 High pressure coolant system, 1500 PSI and
18 GPM, 90 gallon tank, 7.5 H.P. pump motor.
Machine Dimensions Approximately: 5'W x 6'L x 5'H
Coolant System Dimensions: 74"x36"x41" high
Weight approximately: 4000 lbs.
EQUIPMENT:
(2) Counter Rotating Fixtures with ER40 Collet Holders,
.094" to 1.02" x 12" capacity, Loadmeters, automatic
lubrication system, and hardened and ground bedways.
Serial Numbers: 739 & 740 - Built 1981
Temporary Description
Inspect Under Power. 30 day Return Privilege Guarantee.
F.O.B. Truck Harrison, NJ
