Used 1982 ELDORADO DUAL M75 | DRILLS, GUN
ConditionUsed
1 available

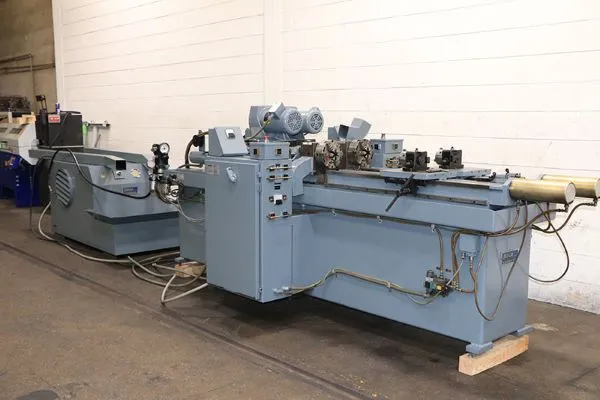

1" x 30" Eldorado, Model 75, Dual Spindle Gun Type Drilling
Machine equipped with (2) 3 H.P. main motor and controls
having the following general specifications:
SPECIFICATIONS:
Working surface of extended table, 20" x 52"
Drilling capacity, .055" to 1" (in most materials)
Spindle travel ball screw feed, 30"
Variable spindle speeds, 1440 to 11,740 RPM
Variable spindle feed rate, .1 to 99.9 IPM
Rapid traverse and return rate, 200 IPM
F-18 High pressure Coolant System, 1500 PSI
and 18 GPM, 90 Gallaon Tank, 7.5 H.P. Pump Motor
Floor space: 4'x220"x4' high
Weight approximately: 4,000 lbs
EQUIPMENT:
(2) 8" 6 Jaw Chucks, (2) 12"x14" Power Tables,
(2) Flo- Minders, (2) Whip Guides, hardened bedways,
and automatic lubrication system.
Serial Number: 1024 & 1025 - Built 1982
Temporary Description
Inspect Under Power. 30 Day Return Privilege Guarantee.
F.O.B. Truck Harrison, NJ
