Used 1976 ELDORADO M75 DUAL | DRILLS, GUN
ConditionUsed
1 available

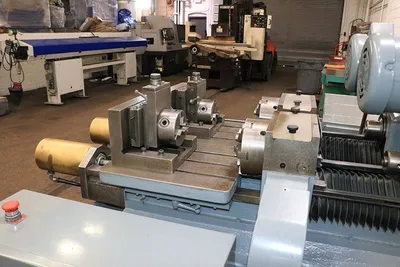

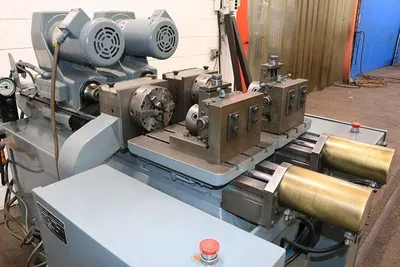

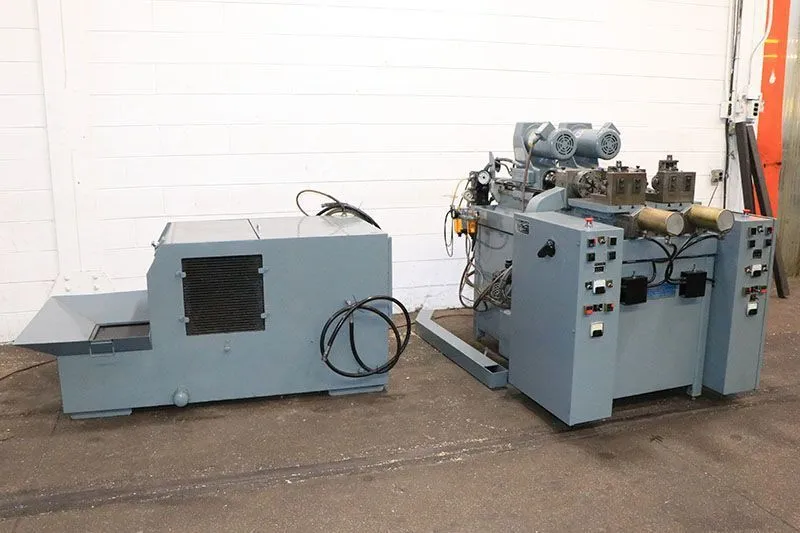

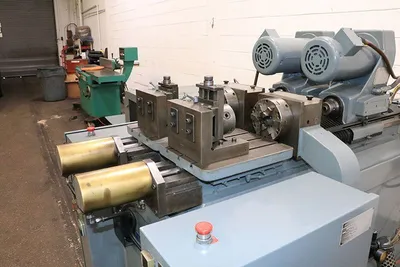

1" x 15" Eldorado, Model M75, Dual Spindle Gun Type Drilling
Machine equipped with (2) 3 H.P. main motor and controls
having the following general specifications:
SPECIFICATIONS:
Drilling capacity, .055" to 1" (in most materials)

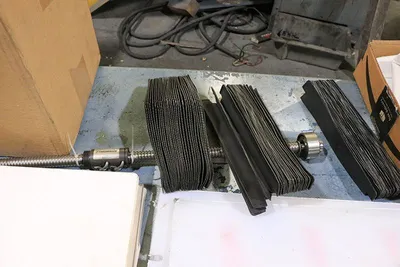

Spindle travel ball screw feed,15"
Variable spindle speeds, 1440 to 11,740 RPM
Variable spindle feed rate, .1 t 99.9 IPM
Rapid traverse and return rate, 200 RPM

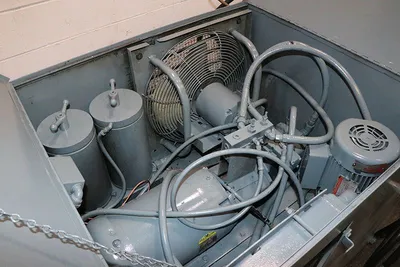

F18 High Pressure Coolant System, 1500 PSI and
18 GPM, 90 gallon tank, 7.5 H.P. pump motor.
Machine Dimensions Approx.: 5'w x 6'l x 5'h
Coolant System Dimensions: 74" x 36" x 41" h
Weight approximately: 4,000 lbs
EQUIPMENT:
(2) 12"x14" power feed tables, (2) 8" 6-jaw chucks,
(2) whip guides, (2) Flo-Minders, automatic lubrication,
hardened and ground bedways
Serial Number: 451 & 452 - Built 1976
Temporary Description
F.O.B. Truck East Harrison, NJ
Inspect Under Power. 30 Day Return Privilege Guarantee.
