Used 1986 ELDORADO M75 | DRILLS, GUN
ConditionUsed
1 available

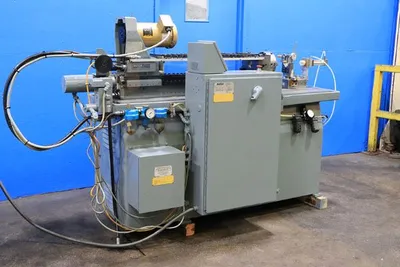

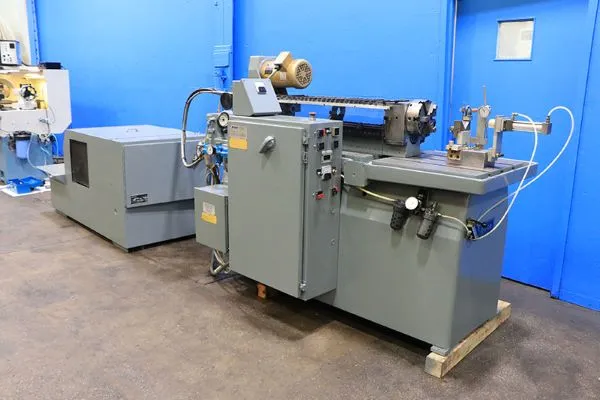

1"x30" Eldorado M75, Single Spindle Deep Hole Drilling
Machine equipped with a 3 H.P. main motor and controls
having the following general specifications:
SPECIFICATIONS:
Working surface of table, 22"x22"
Drilling capacity, .055 up to 1" (in most materials)
Spindle travel ball screw feed, 30"
Centerline of spindle to top of table, 8"
Variable spindle speeds, 1440 to 11,740 RPM
Variable spindle feed rate, .1 to 99.9 IPM
Rapid traverse and return rate, 200 RPM
F-18 High Pressure Coolant System, 1500 PSI and
and 18 GPM, 90 Gallon Tank, 7.5 H.P. pump motor
Machine Dimensions, approximately, 3'x7'x5" high
Coolant System Dimensions, 74"x36"x41" high
Weight approximately: 4,000 lbs total
EQUIPMENT:
7 1/2" 6 Jaw Buck Chuck, Whip Guide, Air operated End Clamp,
Flo-Minder, feed thrust meter, automatic lubrication
system, and hardeb=ned and ground bedways.
Serial Number: 1253 - Built 1986 - Excellent Condition
Temporary Description
Inspect Under Power. Return Privilege Guarantee.
F.O.B. Truck Harrison, NJ
