Fortune 30"/37" x 40"cc, Gap Type Engine Lathe

We are pleased to offer the following for your consideration:

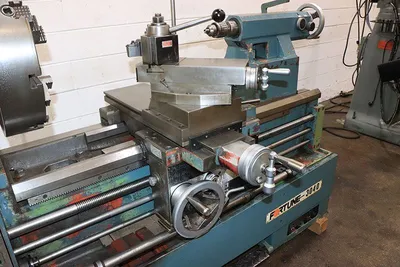

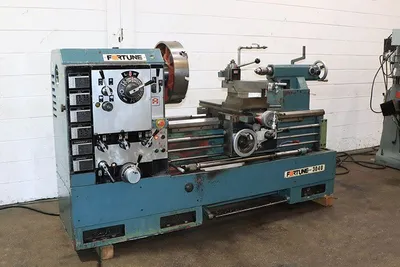

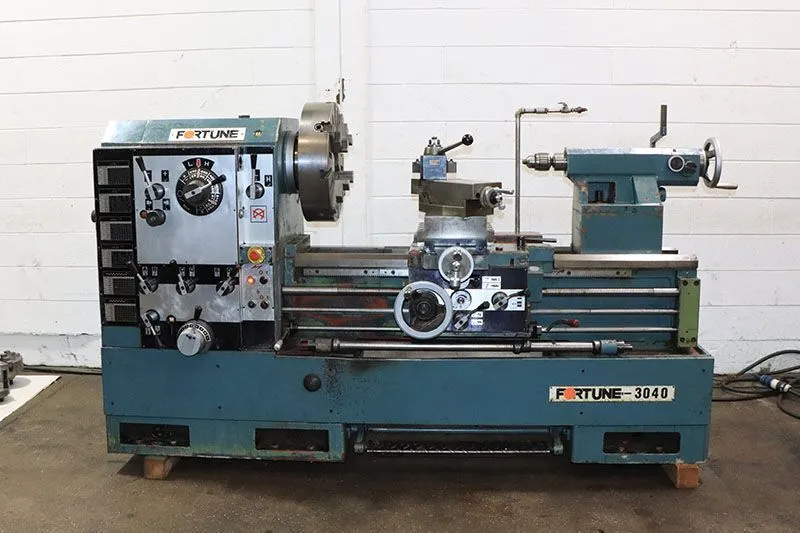

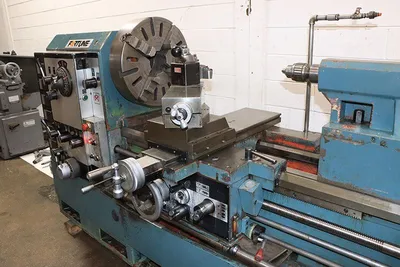

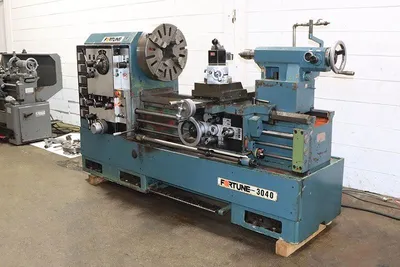

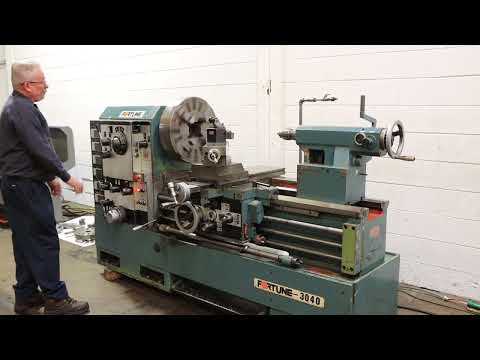

30"/37" x 40" FORTUNE Model 3040G, Gap Bed Engine Lathe, equipped with a 15 H.P. main motor
having the following general specifications:

SPECIFICATIONS:
SWING OVER BEDWAYS ................... 30"

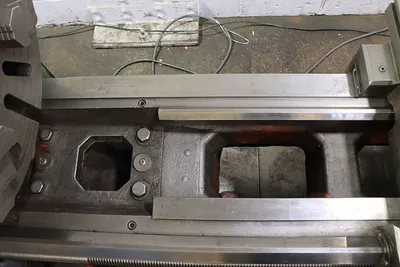

SWING IN REMOVABLE GAP ............... 37-3/4"
SWING OVER CROSS SLIDE ............... 20-1/2"
HOLE THRU SPINDLE .................... 3-1/8"
DISTANCE BETWEEN CENTERS ............. 40"
WIDTH OF BED ......................... 15-3/4"
SPINDLE NOSE ......................... D1-8" CAMLOCK
SPINDLE SPEED RANGE (12) ............. 21 - 1500 RPM
ENGLISH THREADING RANGE .............. 3-1/2 - 26 TPI
METRIC THREADING RANGE ............... 1 - 11 mm
LONGITUDINAL FEED RANGE .............. .0007" - .042" IPR
CROSS FEED RANGE ..................... .0016" - .0935" IPR
TAILSTOCK SPINDLE TAPER .............. #5MT
TAILSTOCK SPINDLE TRAVEL ............. 6-5/16"
APPROXIMATE FLOOR SPACE .............. 100"L x 41"W x 68"H
APPROXIMATE WEIGHT ................... 8,500 LBS

EQUIPPED WITH:

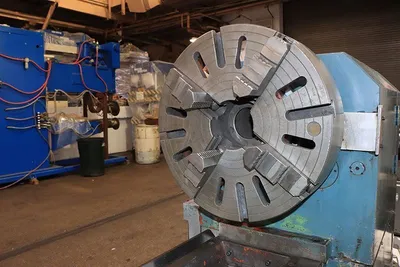

20" 4-JAW CHUCK, LIVE CENTER FOR TAILSTOCK, ALORIS QUICK CHANGE TOOLPOST,

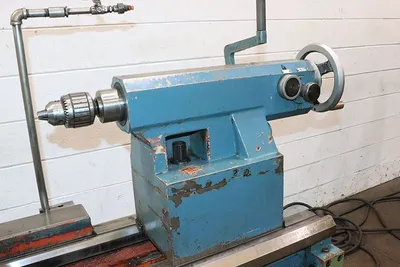

THREAD DIAL, FOOT BRAKE, TWO SPEED TAILSTOCK, HARDENED BEDWAYS,
and COOLANT SYSTEM WITH FULL LENGTH SPLASH GUARD.

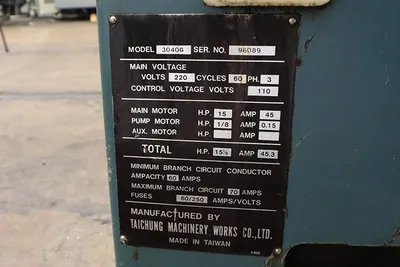

Serial Number: 96089 - Built 1996

Temporary Description

Inspect Under Power. Loaded on Truck. 30 day Return Privilege.

F.O.B. Truck, Harrison, NJ
